QA EASTRON SDM630

⚡📟 QA EASTRON SDM630

QA EASTRON SDM630 is an advanced application designed for communication and reading values from the three-phase power meter EASTRON SDM630 ModbusRTU.
This tool allows easy integration of consumption measurement, production, and electrical grid parameters into your smart home or measurement and control system.
The application automatically creates child devices according to your choice and allows you to optimize bus load.

💼 Business Presentation

An essential addition for energy management, monitoring photovoltaic power plants (PV) or heat pumps.
Thanks to the convenient ModbusTCP converter search and parameter configuration directly from the installation card, you will save time when commissioning the system.

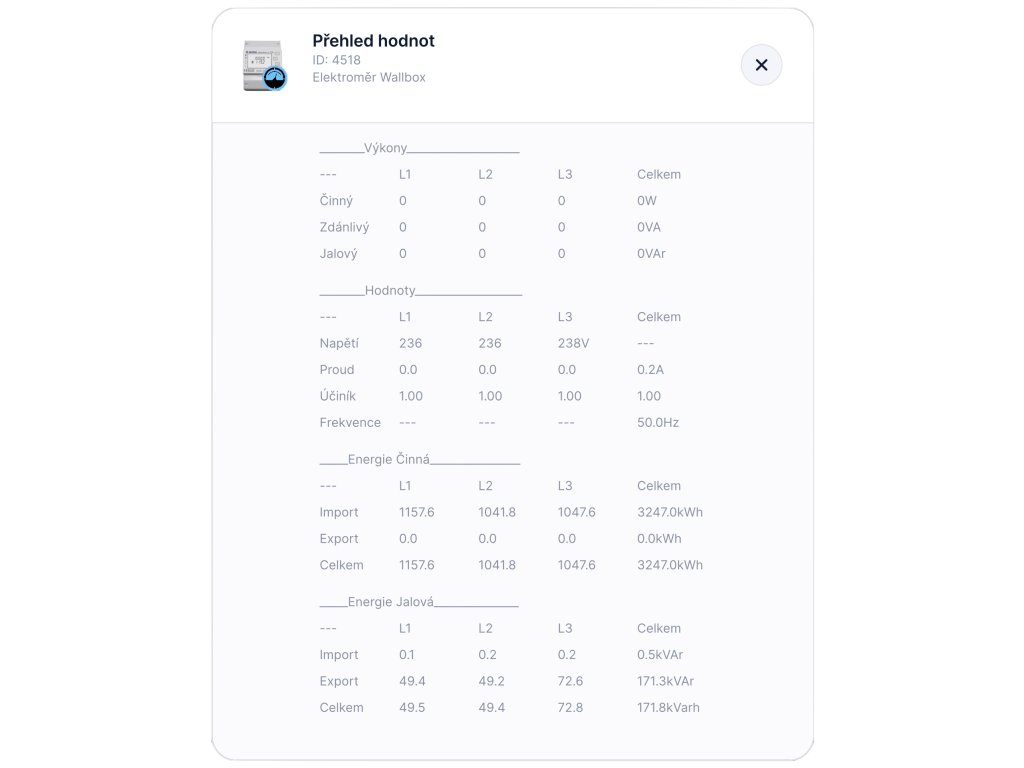

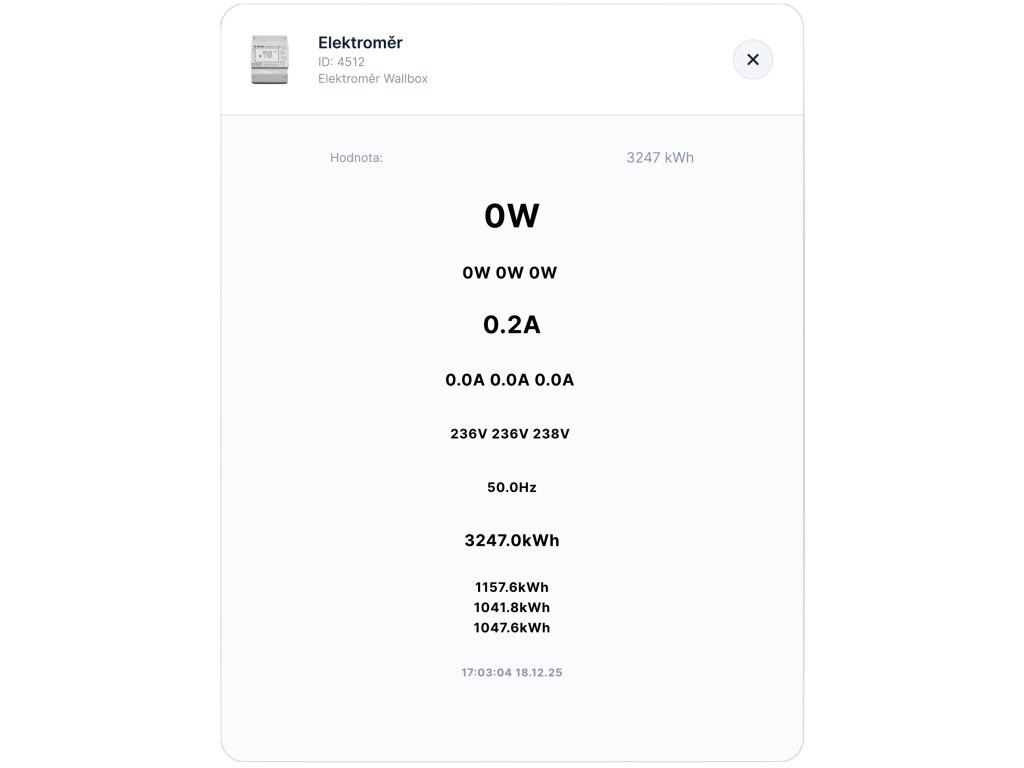

You don't need to parse data in a complicated way – the application will offer you ready-made values (voltage, current, power, frequency, energy) exactly as you need them.

📊 Analysis and Data Management

For clear visualization, working with measurement history, and graphs we recommend integration with SCADA Mervis.

🧪 TRIAL – Trial Version

Verify the functionality of the EASTRON SDM630 module integration in your system.
The TRIAL version unlocks full functionality for 2 days.
Download here: ⬇️ Download trial version

⚠️ Note

The application communicates with the power meter via ModbusTCP/ModbusRTU converter (not included in delivery).
Important: The application does not include bus operation control on a single ModbusRTU bus. With a higher number of devices on the bus or when setting too small an interval between readings, collisions will occur.
We therefore recommend setting reading intervals for individual groups of values carefully so that communication is stable.

⚙️ Key Features

✅ Flexible Data Management

• Selection of reading periods: Option to set different reading intervals for different groups of values (e.g., more frequent reading of current power, less frequent for total consumption).

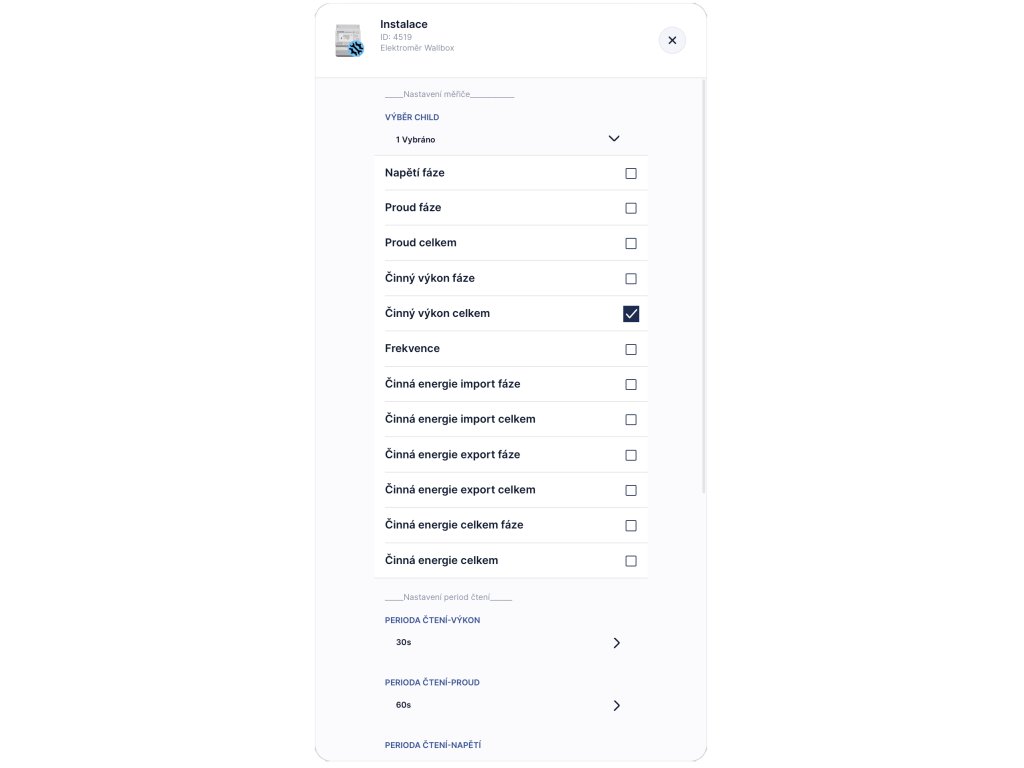

• Child device selection: Select only the quantities you really need to monitor and don't burden the system with unnecessary data.
• Automatic creation: The application automatically generates selected devices for further integration.
• Easy installation: Converter search and communication setup is integrated directly in the installation interface.

✨ Typical Uses

• PV Monitoring: Precise measurement of production and consumption, grid overflow, and import.
• Load control: Switching of consumers based on currently available power.
• Network diagnostics: Monitoring voltage on individual phases, power factor, or network frequency.
• Subsidiary measurement for rental units or specific technologies (heating, cooling).

🔌 Operating Conditions

• Installed EASTRON SDM630 ModbusRTU power meter.
• ModbusTCP/ModbusRTU converter for communication.
• Correctly set Modbus address and communication parameters.
• Free slot for uploading the application to the control unit.

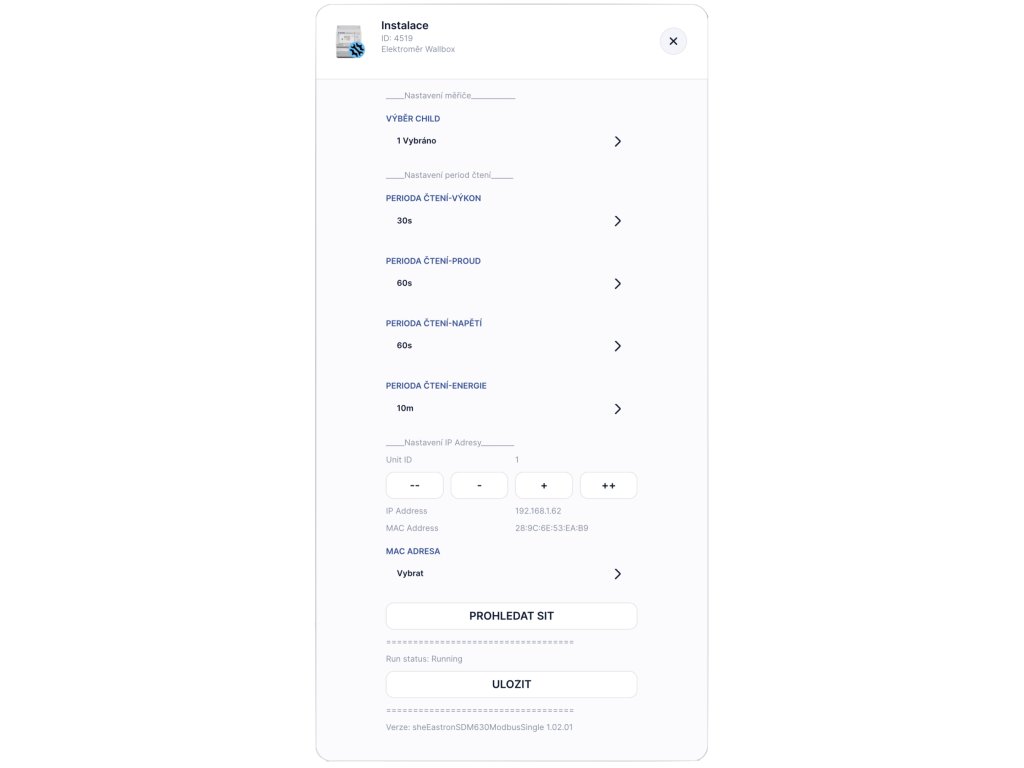

🧰 Setup and Configuration

• Search and pairing with ModbusTCP converter.
• Selection of value groups to read (V, A, W, kWh, Hz, PF, etc.).
• Setting reading period (polling rate) for optimization of bus operation.

🌍 Language Versions

🇨🇿 Czech 🇬🇧 English
